Polyisocyanurate (PIR) / Polyurethane (PUR)

Opting for a PUR insulation core ensures optimal thermal insulation for building wall panels. Additionally, the FM-approved PIR insulation core, a variant of PUR characterized by a closed cell structure, enhances fire resistance performance and becomes indispensable for structures at risk of fire.

Standard Lined Panel
B10101_1

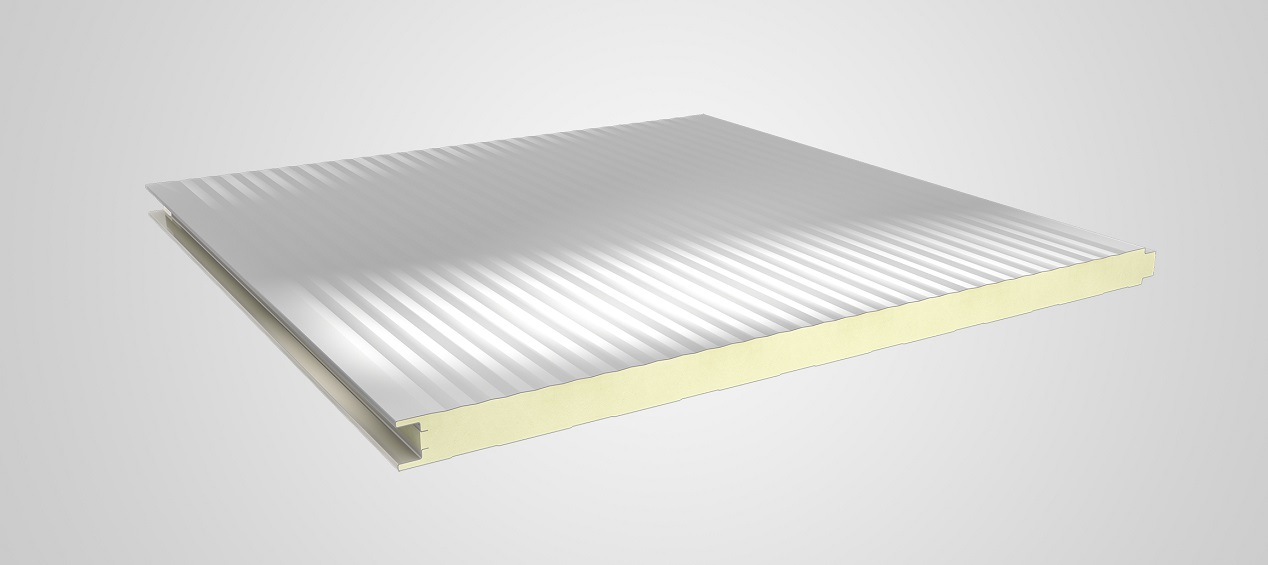

Micro Lined Panel
B10102_1

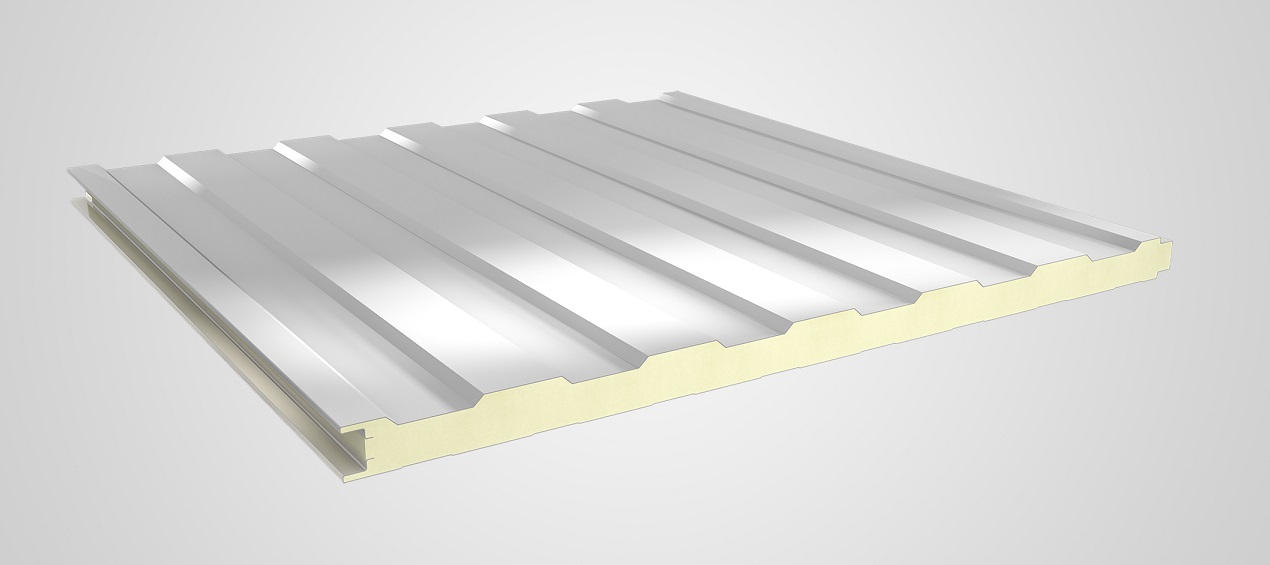

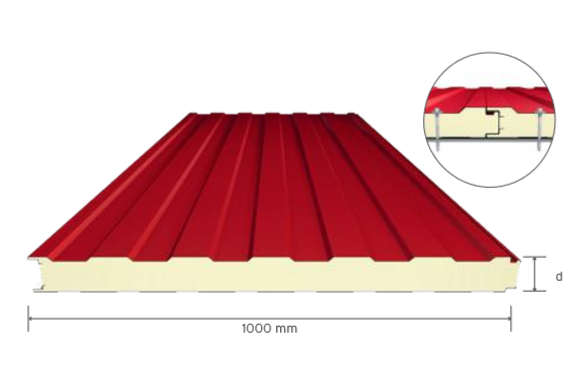

Deep Lined Panel
B10103_1
Product Feature
  • Lined (standard), Micro lined, Deep lined surface type
  • Pre-painted galvanized steel or aluminium inner and outer sheet alternatives
  • Production in various colour options
  • External fixing joint detail
  • Both vertical and horizontal cladding
  • Fire performance according to TS EN 13501-1,B-s2; d0 for PUR insulated wall panels,B-s1; d0 for PIR insulated wall panels
  • Production flexibility at any ordered length between 2 m - 12 m
  • Core thickness options: lined and micro lined panels 40-50-60-70-75-80-100-120-150-180-200 mm; deep lined panels 40-50-60 mm
  • According to TS EN 14509, U values range between0,57 – 0,11 W/m2K for lined and micro lined,0,57 – 0,37 W/m2K for deep lined depending on the panel thickness
  • Mineral Wool and EPS insulation alternatives besides PUR and PIR insulation
  • ISO, TSE, CE quality certificates

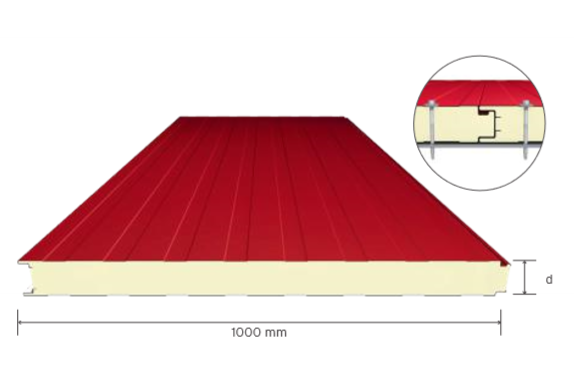

B10101_3

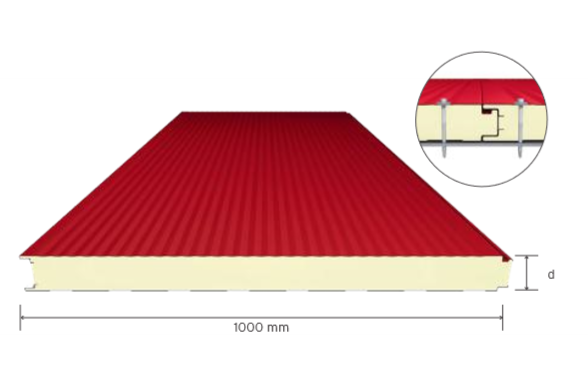

B10102_3
B10103_3

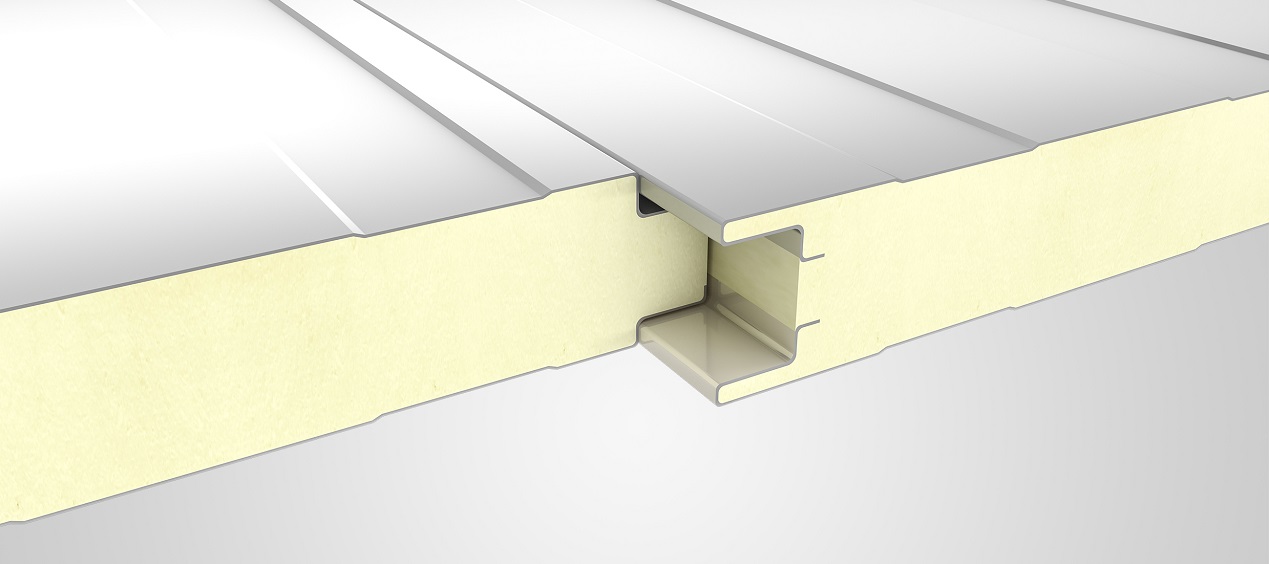

B10101_2
B10102_2

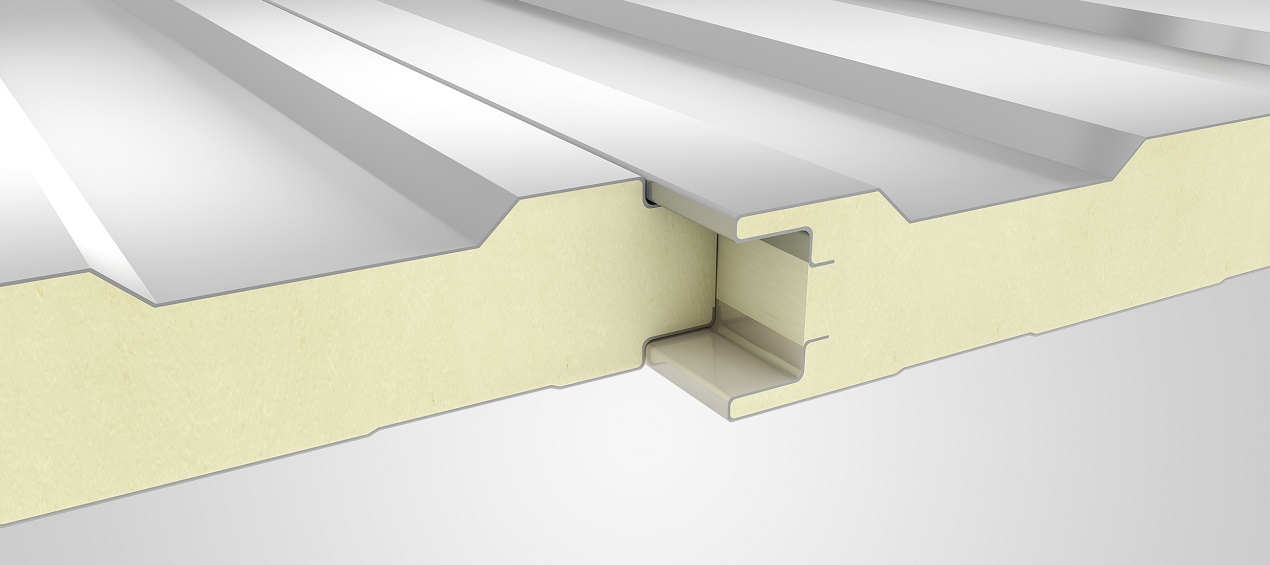

B10103_2
Physical Data
pir-pur_physical data
Load Data
pir-pur_load data

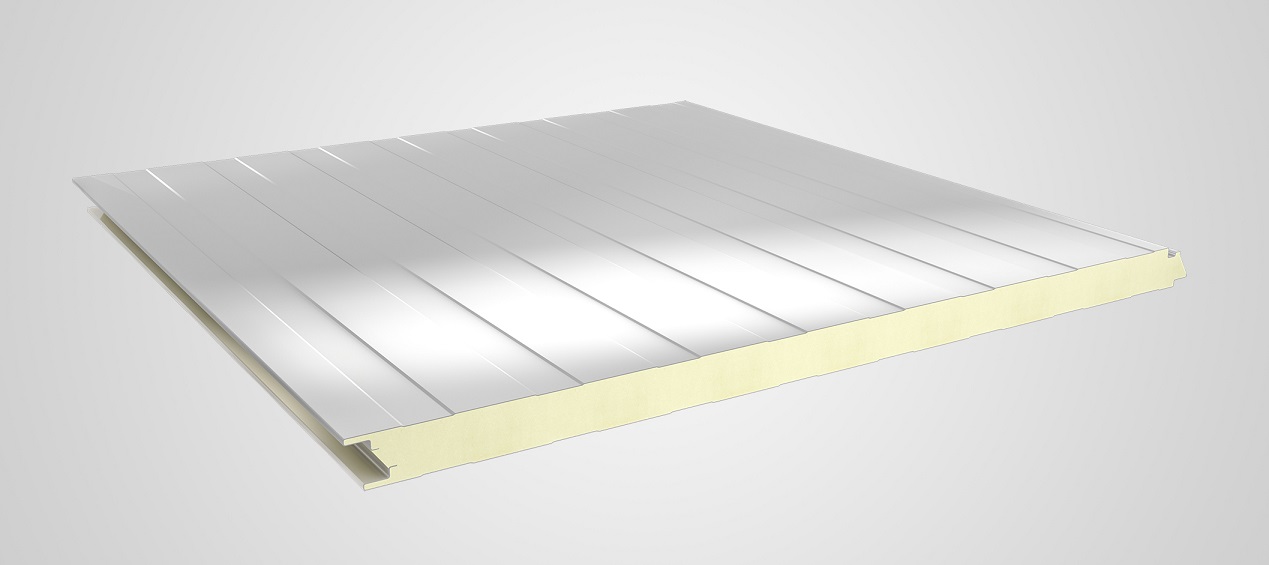

Standard Lined Panel
B10104_1

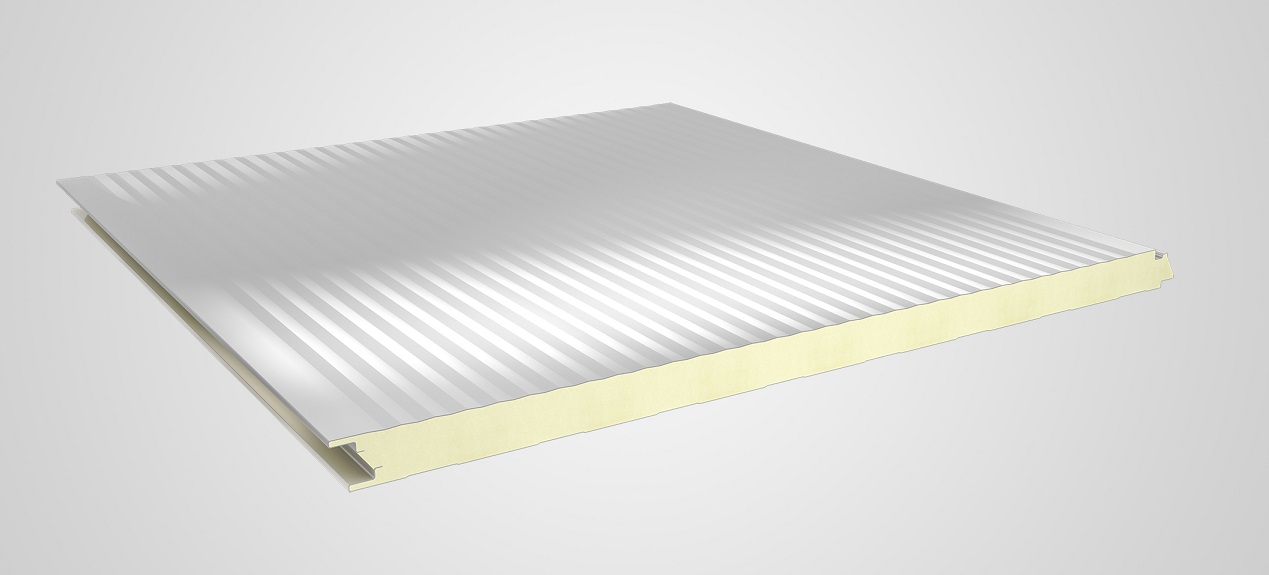

Micro Lined Panel
B10105_1

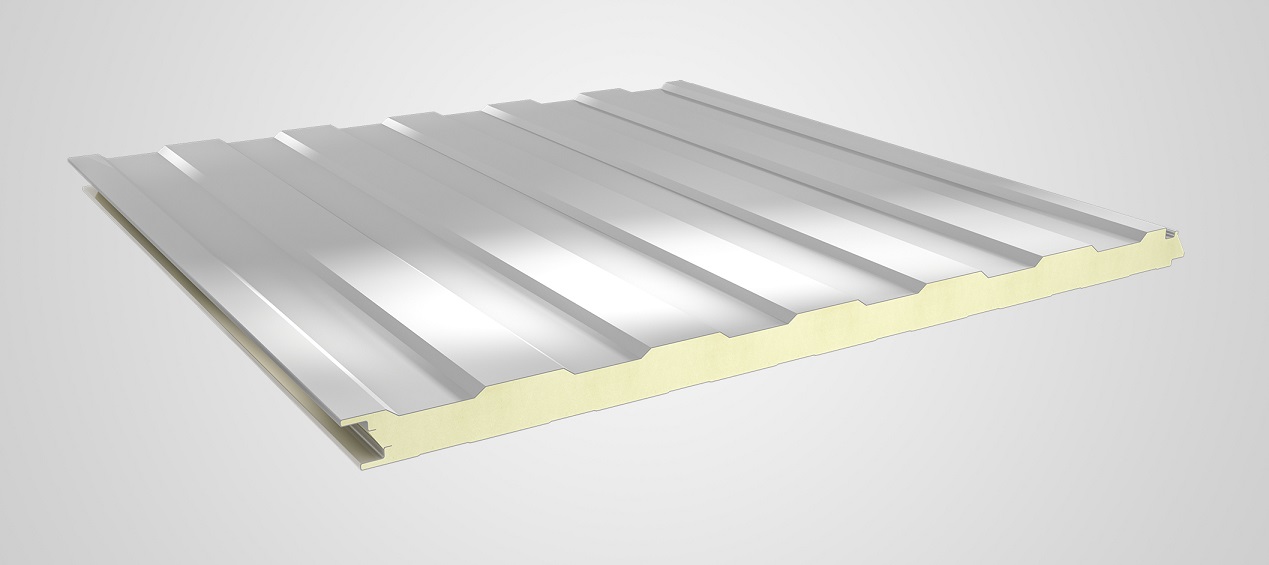

Deep Lined Panel
B10106_1
Product Feature
  • Lined (standard), Micro lined, Deep lined surface type
  • Pre-painted galvanized steel or aluminium inner and outer sheet alternatives
  • Production in various colour options

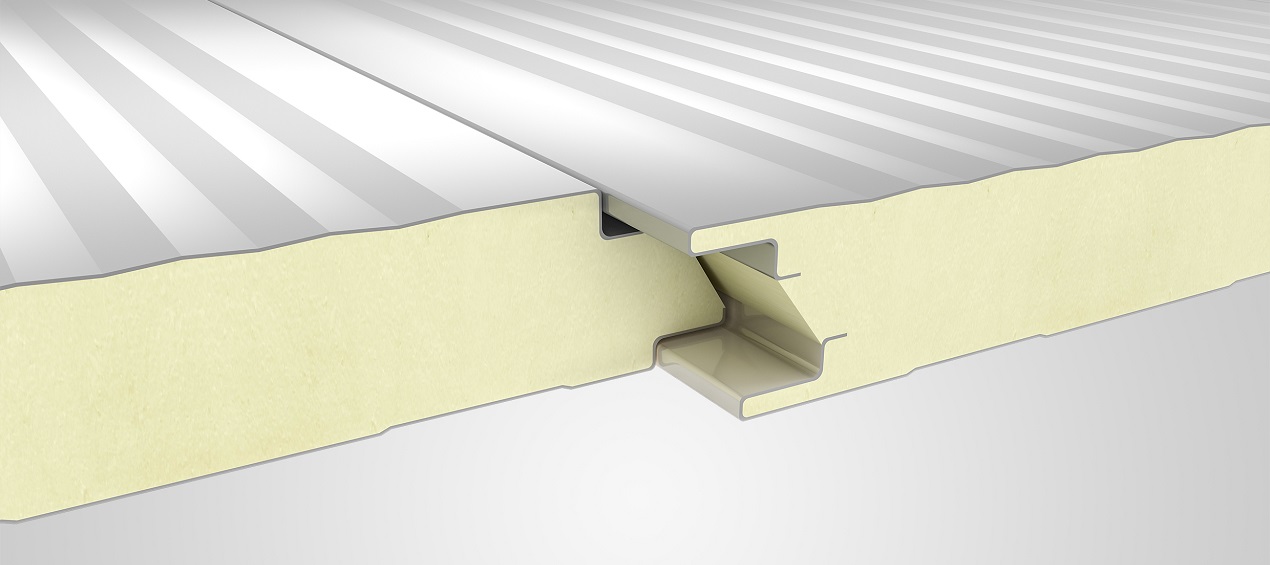

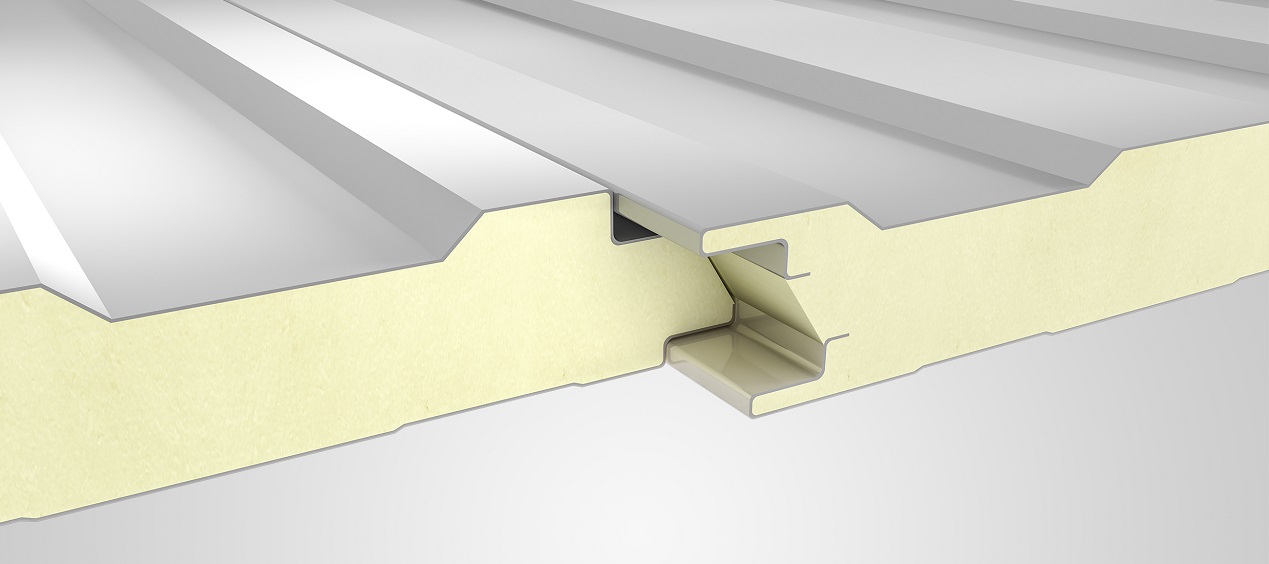

  • Secret fixing joint detail
  • Both vertical and horizontal cladding
  • Fire performance according to TS EN 13501-1,B-s2; d0 for PUR insulated wall panels,B-s1; d0 for PIR insulated wall panels
  • Production flexibility at any ordered length between 2 m - 12 m
  • Core thickness options: lined and micro lined panels 40-50-60-70-75-80-100-120-150-180-200 mm; deep lined panels 40-50-60 mm
  • According to TS EN 14509, U values range between 0,67 – 0,11 W/m2K for lined and micro lined 0,67 – 0,42 W/m2K for deep lined depending on the panel thickness
  • Mineral Wool and EPS insulation alternatives besides PUR and PIR insulation
  • ISO, TSE, CE quality certificates and FM Approval Certificate

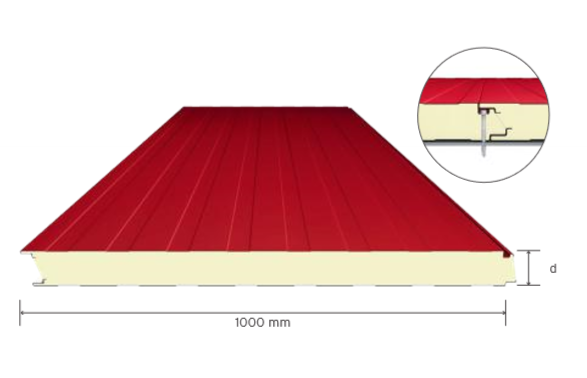

B10104_3

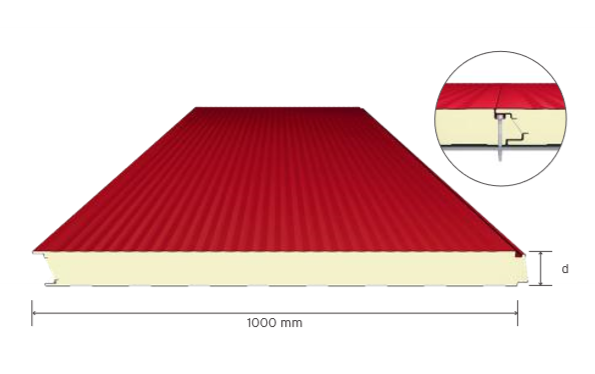

B10105_3

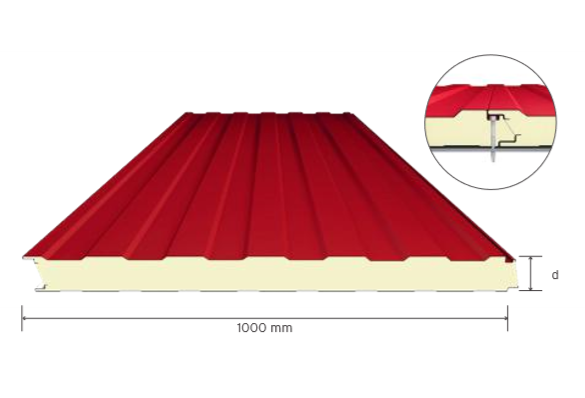

B10106_3

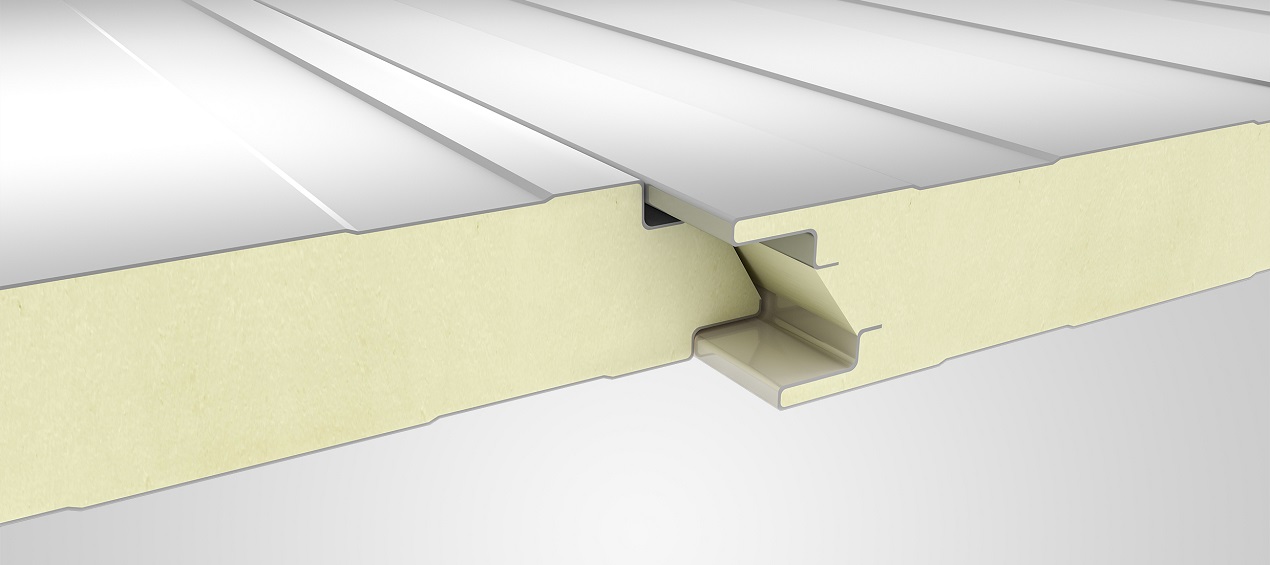

B10104_2
B10105_2
B10106_2

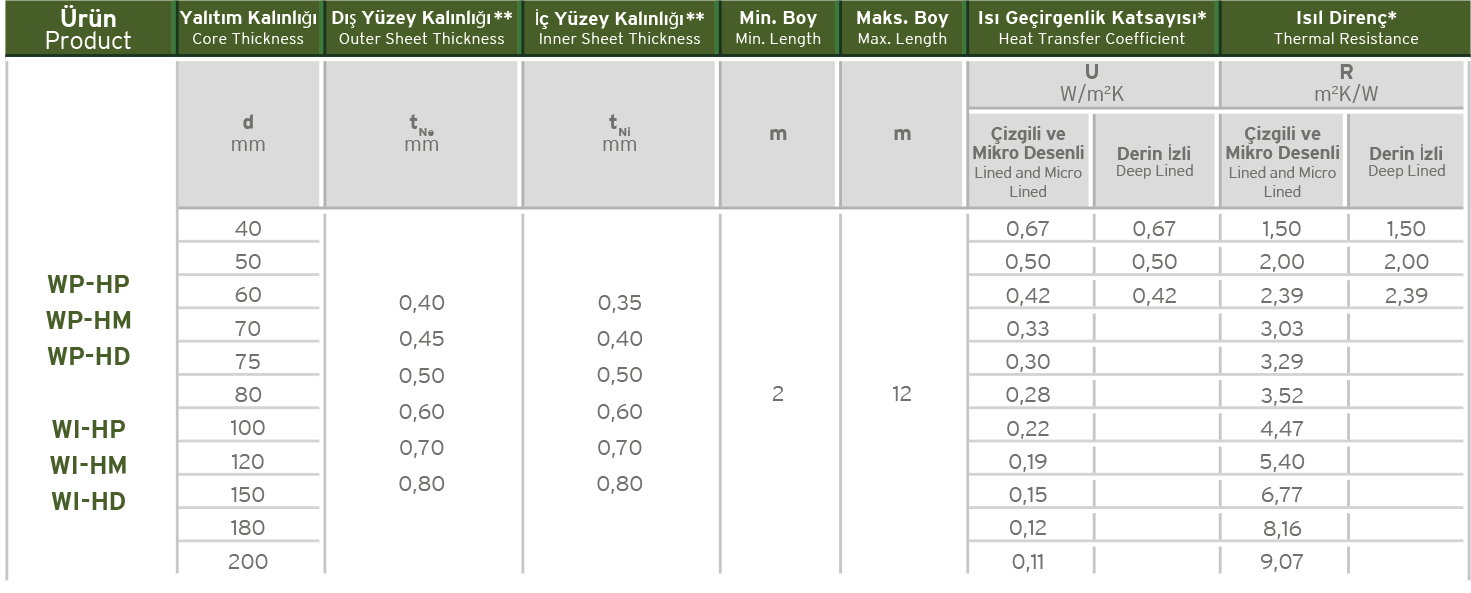

Physical Data
pir-pur-hid_physical data

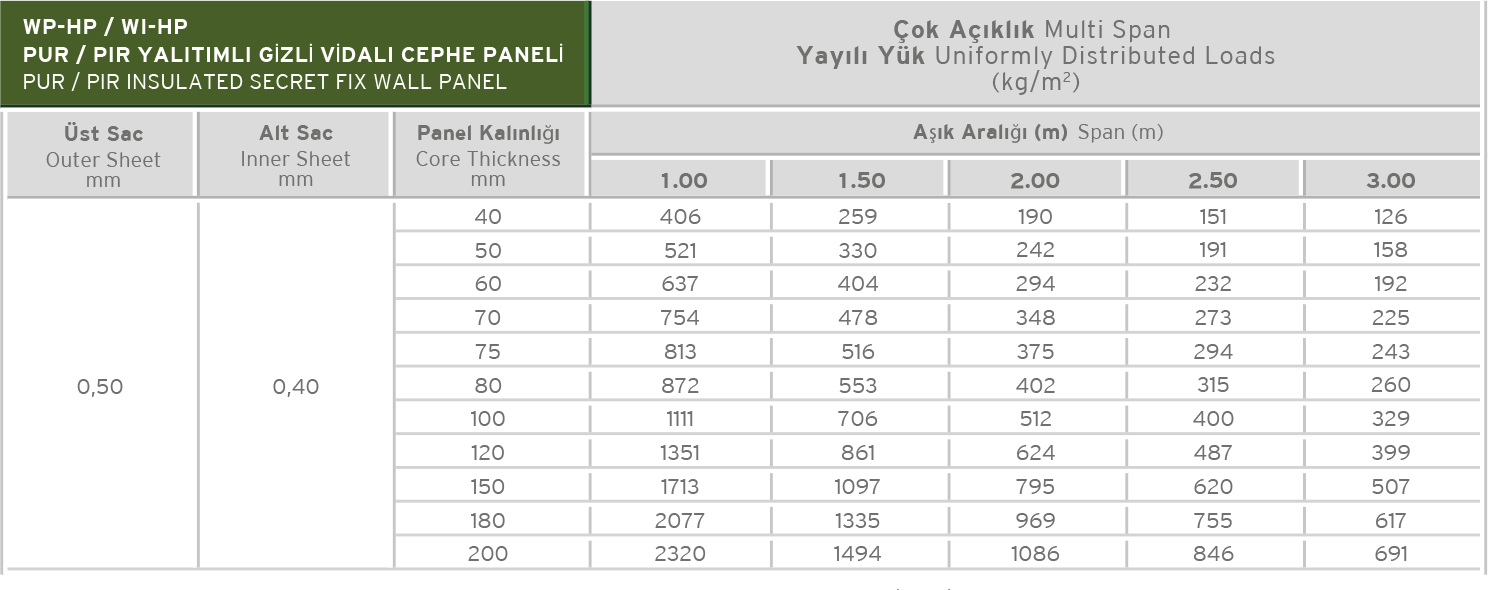

Load Data
pir-pur-hid_load data

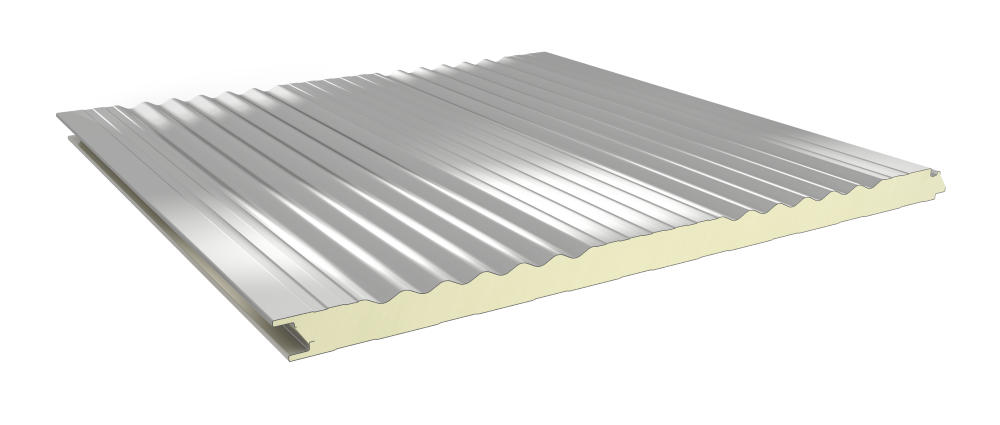

B10107_1
Product Feature
  • Sinus and lined surface type
  • Pre-painted galvanized steel or aluminium inner and outer sheet alternatives
  • Production in various colour options

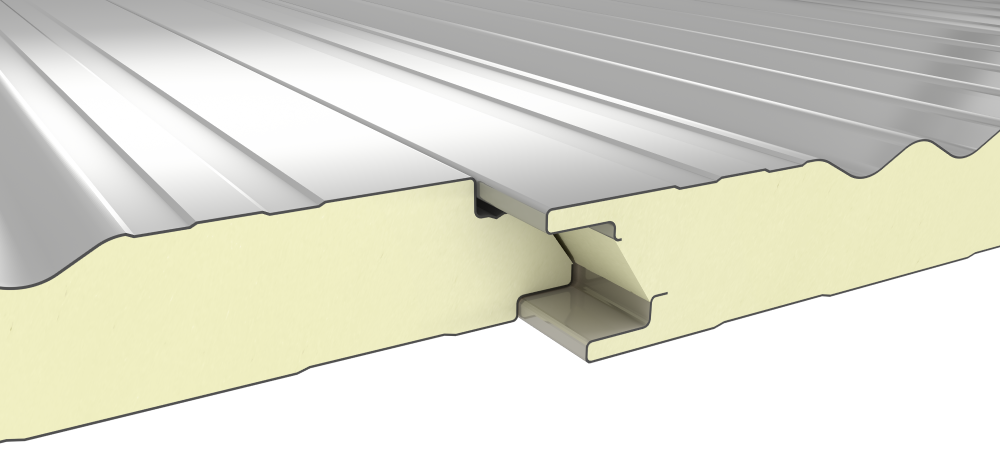

  • Secret fixing joint detail
  • Both vertical and horizontal cladding
  • Production flexibility at any ordered length between 2 m - 12 m
  • Core thickness options, 40-50-60-70-75-80-100-120-150-180-200 mm
  • Mineral Wool and EPS insulation alternatives besides PUR and PIR insulation

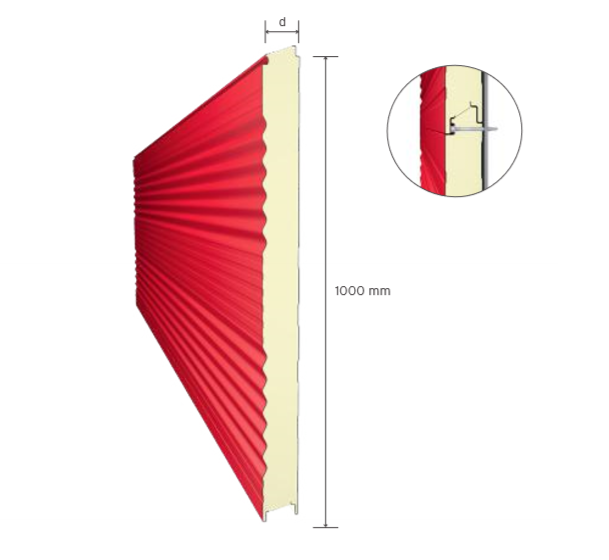

B10107_3
B10107_2
